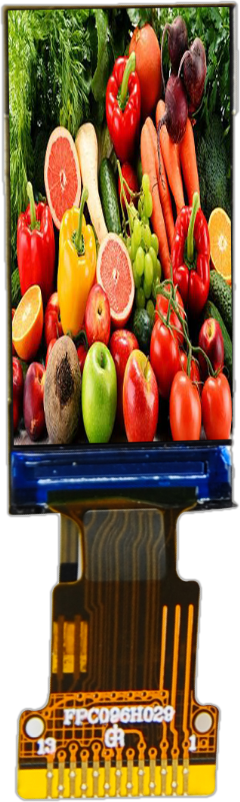

TFT彩屏
產品參數
| Diagonal Screen Size | 1.12" | 1.37" |
| Color | Full Color | Full Color |
| Module Construction | COG | COG |
| Product | N112-9696TDDAG01-H34 | N137-2828KDDAG01H34 |
| Driving Method | Passive Matrix | Passive Matrix |
| Number of Pixels | 96RGB×96 | 128RGB×128 |
| Active Area(mm) | 20.135×20.14 | 24.548×25.556 |
| Panel Size(mm) | 25.8×30.1×1.227 | 31.2×33.8×1.427 |
| Pixel pitch(mm) | 0.07×0.21 | 0.064×0.192 |
| Pixel Size(mm) | 0.045×0.19 | 0.036×0.172 |
| Weight | TBD | TBD |
| Duty | 1/96 | 1/128 |
| FPC Pins | 34 | 34 |
| Color | 262,144 Colors | 262,144 Colors |
| Porwer Supply Voltage | 2.4~3.5V | 2.4~3.5V |
| Frame Rate | 100 Frames/Sec | 100 Frames/Sec |
| Operating Temperature | -40~70℃ | -40~70℃ |
| Storage Temperature | -40~85℃ | -40~85℃ |
| Drive IC | SSD1351 | SSD1351 |
| Brightness | 60 (Min) cd/m2 80 (Typ) cd/m2 | 60 (Min) cd/m2 80 (Typ) cd/m2 |
| Driving Voltage | 15V | 16V |
| Interface | Parallel / SPI | Parallel / SPI |
| Folding Ability | Folding Type | Folding Type |
| Assembly | Soldering | Soldering |
